Amicus Altus 112 for commercial applications

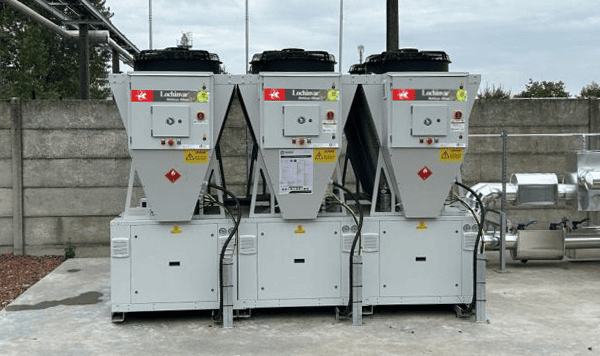

UK – Lochinvar has added the modular Amicus Altus 112 to its range of air-to-water heat pumps for large-scale commercial heating, cooling and hot water applications.
With outputs from 112kW-1120kW per cascade, and capable of achieving water flow temperatures of up to 75°C, the Amicus Altus 112 is aimed at applications such as healthcare facilities, sports and leisure centres, hotels and renovation projects. Its modular design allows systems to be precisely sized to meet project requirements, whether for new-build or retrofit installations.
Sustainable solution for decarbonising heat
The Amicus Altus 112 uses R290 (propane), a natural refrigerant with a low Global Warming Potential (GWP) of just 3. This makes it a sustainable solution for decarbonising heat without compromising on performance or operating temperatures.
As a fully electric system, the Amicus Altus 112 produces zero on-site emissions. When combined with renewable electricity or photovoltaic systems, it enables completely carbon-free operation, supporting long-term sustainability and net-zero objectives.
Designed for flexibility and performance
Lochinvar says that the Amicus Altus 112 has been engineered to integrate with the existing Amicus Altus 88kW R290 unit, allowing mixed cascades and increased system flexibility. Up to 10 units can be connected in cascade, delivering a total output of up to 1120 kW, while maintaining a compact footprint and requiring only a 2-metre exclusion zone around each unit.
Available in 2-pipe or 4-pipe configurations, the system includes flow and return header arrangements and a primary pump per unit, simplifying installation and system design.
Key features
- Output range from 112kW-1,120 kW
- R290 (propane) refrigerant with GWP = 3
- High supply temperatures up to 75°C,
- Full operation down to –20°C ambient
- Low-noise operation
- Modular 2-pipe and 4-pipe configurations
- Integrated flow and return pipework headers with primary pump per unit
Main advantages
- Modular and scalable: Connect up to 10 units for high-capacity applications
- Compact footprint: Minimal space requirements on site
- Easy integration: Fully compatible with the Imperium controller and existing Altus range
- Low maintenance: Modular components simplify servicing and reduce downtime
- Sustainable performance: High output with zero on-site CO₂ emissions

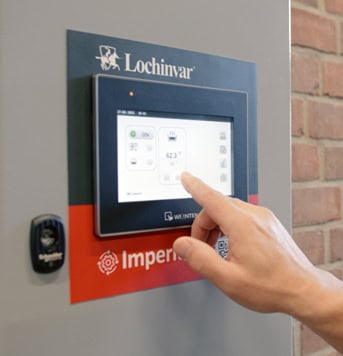

Imperium System Controller compatible
The Amicus Altus 112 is compatible with the Imperium System Controller, developed by Lochinvar’s in-house engineering team. Imperium optimises system performance without the need for BMS modifications and provides intelligent, cloud-based monitoring. This enables real-time performance insights, proactive maintenance, and maximum operational reliability throughout the system lifecycle.
